产品介绍 便携式产品 储能产品
光能路面组件 Solar Road component
2026-07-01 16:21:58

      光能智慧路面系统核心技术获得了重要创新，最新一代光能路面组件取得了重大突破，在保证光能路面高强度、高透光、高摩擦系数、抗碾压能力的性能前提下，实现了提升光能智慧路面使用寿命、光电转换率、质量保证率，降低了生产成本、施工成本。

      solar smart pavement system core technology obtainedimportant innovation,the second generation of solar smart pavementcomponents made a major breakthrough of technology to ensuring the solarsmart pavement high intensity,high visible light transmission,high frictioncoefficient,great anti-rolling ability,realize the improved solar smartpavement service life,photoelectric conversion rate,quality assurancerate,reduce the cost of production and construction.


       主要创新集中在光能组件透明面层结构的技术升级上，光能路面组件透明面层集成了上一代光能路面的防滑、耐磨、抗碾压的性能。二代光能组件安装到地面后，不再需要铺装透明防滑颗粒，减少了施工工序，降低了施工环境、施工条件对光能路面施工质量的影响。
为光能智慧路面技术的广泛推广和应用开启了的局面。

       The main innovation focuses on the technical upgrade of thetransparent surface layer structure of the solar module.The transparentsurface layer integrates the anti-skid,wear resistance and anti-crushingperformance of the previous generation of solar module pavement.After thesecond-generation solar module is installed to the ground,there is nolonger a need to shop again with transparent anti-skid particles,whichreduces the construction process and reduces the impact of theconstruction environment and construction conditions on the constructionquality of the solar pavement.It is opened up for the extensive promotionand application of solar smart pavement technology.

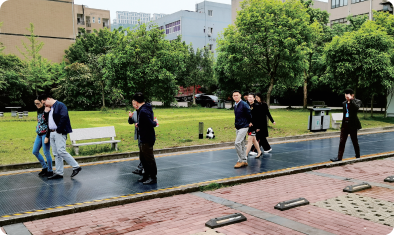

光能路面安装实景展示



光能路面安装实景展示












宇能T406U-180W
功率：Power(pm/m) 180
尺寸Dimensions(mm) 1276*785
开路电压Open circuit voltage(voc/v) 33.6
短路电流short circuit current(isc/A) 6.447
工作电压operating voltage(vmp/V) 29.3
工作电流operating current(imp/A) 6.14
填充因子fill factor(%) 78.51
组件转换率module efficiency(%) 19.21
重量 7.9





宇能T405-150
功率：Power(pm/m) 150
尺寸Dimensions(mm) 1038*765
开路电压Open circuit voltage(voc/v) 28
短路电流short circuit current(isc/A) 6.447
工作电压operating voltage(vmp/V) 24.42
工作电流operating current(imp/A) 6.14
填充因子fill factor(%) 78.51
组件转换率module efficiency(%) 19.21
重量 6.7






宇能T404-120
功率：Power(pm/m) 120
尺寸Dimensions(mm) 836*770
开路电压Open circuit voltage(voc/v) 22.72
短路电流short circuit current(isc/A) 6.447
工作电压operating voltage(vmp/V) 19.84
工作电流operating current(imp/A) 6.16
填充因子fill factor(%) 78.51
组件转换率module efficiency(%) 19.83
重量 5.4
